Exhaust Manifold (4-cylinder)
An exhaust manifold for a 4-cylinder engine, modelled in SolidWorks from sweeps and detailed on a full drawing sheet with dimensions, section B-B and material.
Learn the engineering behind it
- Type
- Part
- Category
- Automotive
- Software
- SolidWorks
- Material
- Cast iron / stainless steel
Design detail
What's in the model
- Four-port head flange with bolt holes, spaced to match the cylinder head
- Four swept runners that merge into one round collector and outlet flange
- Drawing sheet with dimensions, section B-B, notes and the material called out

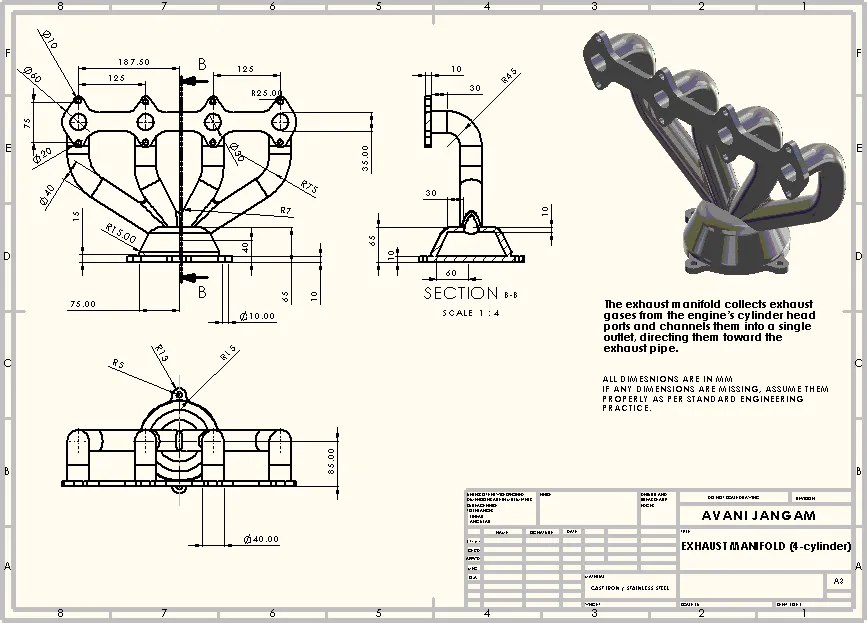

Drawing
The drawing sheet
